Energy Storage + Grid

System Electrical Principle Diagram Introduction

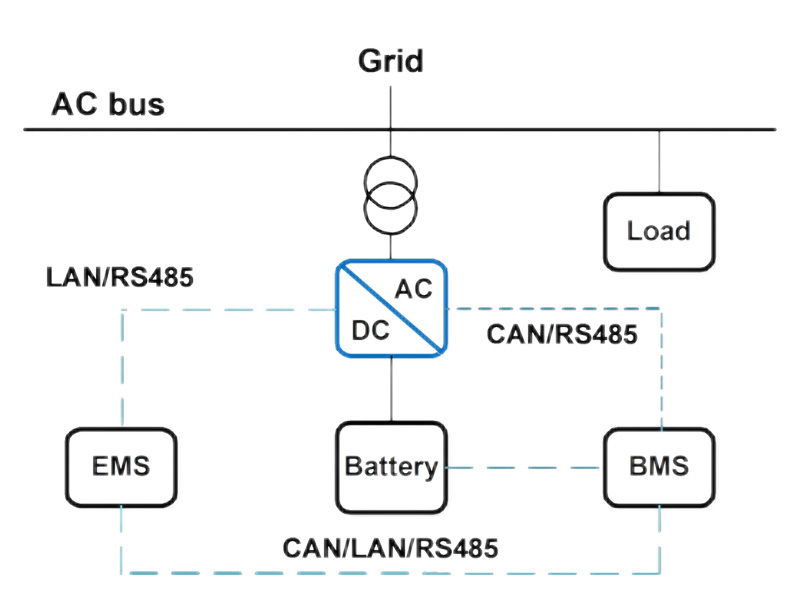

This image represents a system electric principle diagram for energy storage integrated with the grid.

The main components and their functions are:

1. AC Bus: Serves as the primary connection point for electricity distribution, linking the grid, loads, and energy storage system.
2. Grid Connection: The system connects to the utility grid, allowing for energy exchange to support various applications.
3. Battery: Stores energy during periods of low demand and discharges energy during high demand, optimizing energy usage.
4. BMS (Battery Management System): Monitors and manages battery performance, ensuring safety, efficiency, and longevity.
5. EMS (Energy Management System): Controls and optimizes the operation of the entire energy storage system, providing intelligent management for peak shaving, valley filling, and demand response.
6. AC/DC Converter: Facilitates bidirectional energy conversion between AC from the grid and DC for the battery.
7. Communication Interfaces (CAN/LAN/RS485): Enable efficient communication between components for real-time monitoring and control.

Expanded Application Directions

This energy storage system integrates seamlessly with the grid, offering a wide range of applications across different scenarios:

Peak Shaving and Valley Filling:
By charging the battery during off-peak hours when electricity rates are low and discharging it during peak demand periods, this system helps businesses and households reduce energy costs and maximize savings.

Demand Side Response:
The system actively responds to fluctuations in grid demand, supporting grid stability by adjusting energy storage and release in real-time. This reduces the need for expensive grid upgrades and promotes a balanced energy supply.

Electricity Cost Savings:
Through intelligent energy management, the system minimizes reliance on the grid during high-cost periods, reducing overall electricity bills. It's particularly beneficial for users with tiered or time-of-use electricity pricing.

Transformer Capacity Increase:
By providing additional power during peak demand, the system reduces the stress on transformers and distribution networks. This prolongs the life of grid infrastructure and reduces the likelihood of overloads or failures.

Improved Power Quality:
The system mitigates voltage fluctuations, reduces harmonics, and enhances frequency stability, ensuring a smooth and reliable energy supply for sensitive equipment.

Renewable Energy Integration:
When paired with solar panels or wind turbines, the system stores excess renewable energy for later use, ensuring energy availability even during periods of low generation. This maximizes the efficiency of renewable energy sources.

Backup Power Supply:
In case of power outages, the system can provide an uninterrupted power supply for critical loads, ensuring business continuity and household comfort.

Grid Independence:
For regions with unreliable grids, the system can offer partial or full energy independence, reducing dependence on external electricity supply and providing energy security.

Environmental Benefits:
By reducing peak energy demands and optimizing energy efficiency, the system helps decrease greenhouse gas emissions, contributing to a more sustainable future.

Industrial Applications:
Ideal for factories or commercial facilities with heavy machinery, this system can handle high power loads efficiently while improving operational reliability and reducing energy waste.
